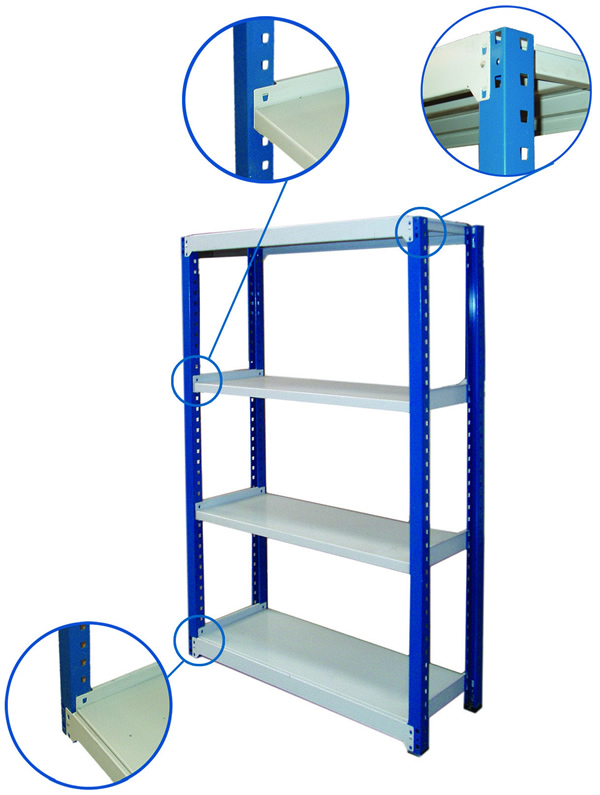

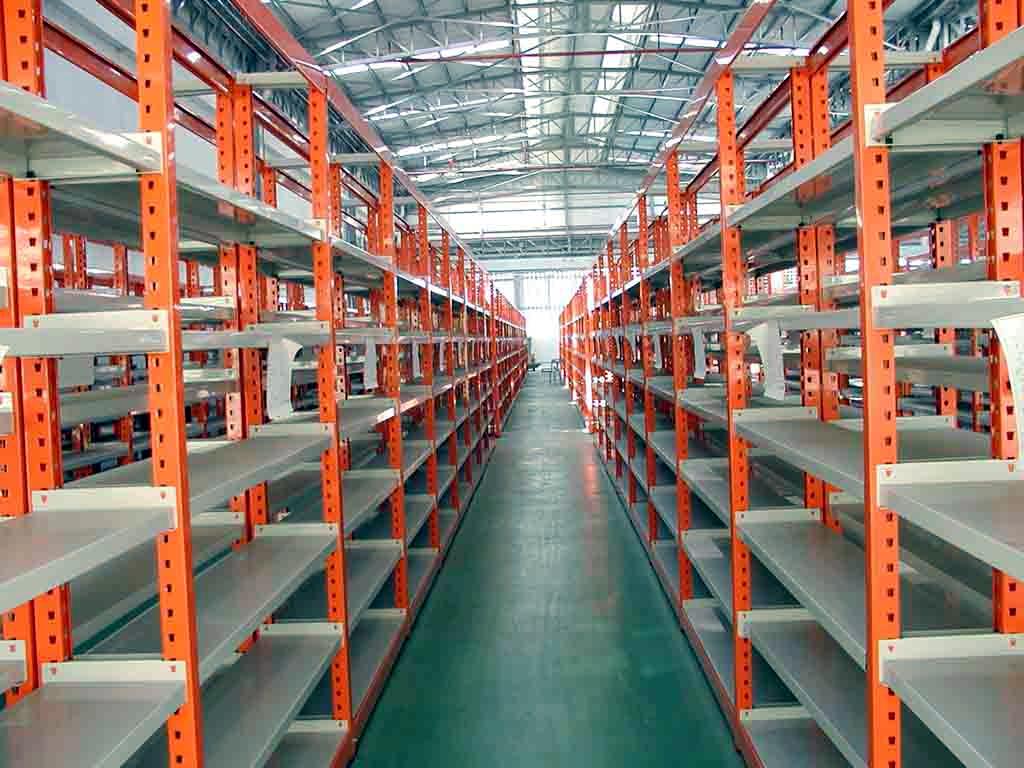

Medium Duty Shelving -Type A (Long span shelving)
Long span shelving is a durable, botless rack system that allows maximum storage strength with quick and easy assembly.
Basically, it is a smaller version of our Selective Pallet Rack, but yet easier to handle and is ideal for hand stacking. shelves are adjustable on 50mm， centers and can accommodate a particle board shelf or wire decking. Starter units can be used individually
or combined with add-on units to complete a row of racks. Static loading only. Not to be used with forklift.
Advantages:
Excellent in quality and beautiful in appearance with high quality steel
Easy to dismantle and assemble without any nuts & bolts and tools
utilize the space of warehouse effectively
Can be adjusted freely by a pitch of 50mm
Prompt delivery and shipment
Excellent security
Static powder coating
Loading capacity chart
Loading capacity ( kg per level ) | Length :1200mm | Length:1500mm | Length:1800mm |
Depth : 470mm | 300kg | 250kg | 250kg |
Depth : 600mm | 350kg | 300kg | 250kg |
Depth : 720mm | 350kg | 300kg | 250kg |
Depth : 920mm | 450kg | 400kg | 400kg |
Depth : 1180mm | 450kg | 400kg | 400kg |
Size of Upright (mm) | 55*55*1.5 Pitch=50 H=1.5,1.8,2.0,2.4,3.0 (m) | ||
